Dead-Hold® BDC rectical use ????????????????????????????????????????????????

First you need to know if it is a first or second focal plane scope. Then you have to get hold of the retical subtensions. If second focal plane, need to know at what magnification the subtensions are true. Also need the bullet BC and muzzle velocity. Lastly a ballistic solver that ouput ranges to the closest meter.

Or, just get hold of Strelok and select your scope retical and magnification.

Time consuming without a scope that can dial, a chrony and a bullet BC. But possible.

Firstly , to get a 200 m zero, you have to shoot a 200 meter target and zero the scope there.

To figure out the range of the subtensions :

1. after zeroing at 200 meters, move the target to the next distance [ say 30 meters further ].

2. shoot three shots

3. go to the target and mark the center vertical of the three shots, and patch the holes.

4. look through your scope at the aim point, and see which subtension the center vertical is at. make a note of it.

4. move the target to the next known distance, and repeat.

Your point of aim at all the distances should be the zero point.

The smaller the distance between target positions, the better data you will have.

That is the only way I can think of where you will know the approximate range of each subtension without dialing the scope, or knowing the bullet velocity.

sounds like lots of bullets down range $$$

Unlike mil or moa subtension reticles, BDC reticles have much less hash marks and usually line up with more popular distances using standard ammunition. Most I have seen is every 100 yrds at the scope's standard magnification. Scope manufacturers usually show these distances and standard magnification in the pamphlet included in the box. Provided you do not shoot further than 500 yrds using standard ammunition, the error should be minimal.

If you still have access to Strelok, and the bullet and scope reticle is in the database, it will show you a more acurate reticle aimpoint.

Still, as an ethical hunter you should confirm these points on the shooting range before shooting any animal. This will cost you money. Thankfully, provided you do not change the load or the components and your MV is within 50 fps of your reference load, you would not need to do it again.

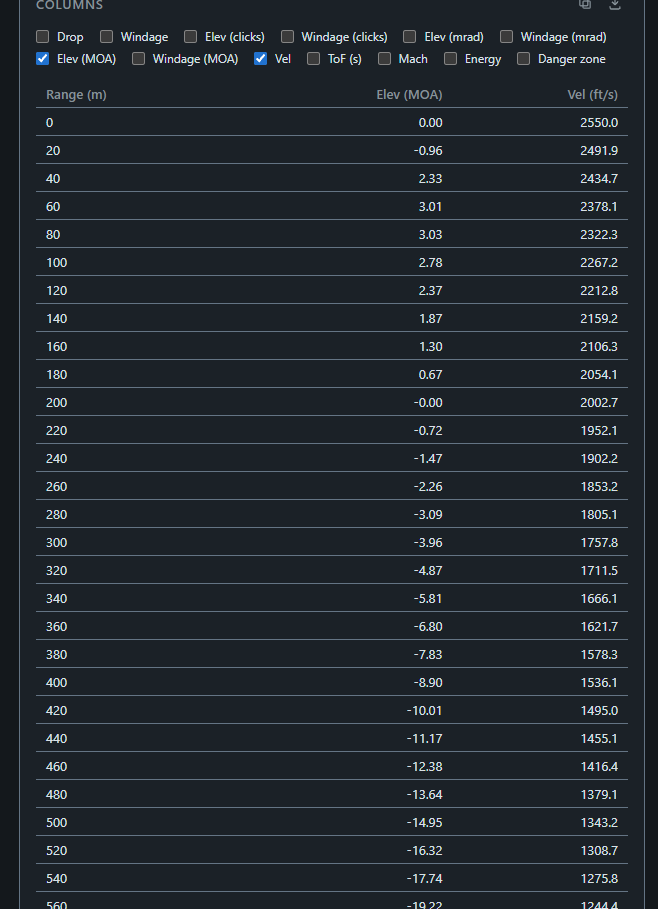

For more advance users, you need to use the reticle subtension diagram and calculate your own distances. For instance I have attached the reticle of the immersive 5x30 BDC scope. This is calibrated for .223 Rem shooting a 62gr bullet. The table is for a .30 cal. Norma Oryx with a MV of 2550 from a .308 Win.

Using the table and the diagram attached and zero the centre cross at 200m

the bottom of the centre cross is at 260m (2.3MOA)

the top of the lower vertical line is at +- 290m (3.7MOA)

first hash is at +- 310m (5.2MOA)

second hash is at +- 360m (6.9MOA)

3rd hash at +- 400m (8.8MOA)

4th at +- 435m (10.8)

5th at +- 470m (13.1)
